Electric Inboard Motors

ELCO - The Trusted Solution for Electric Inboard Boat Motors
Explore Electric Inboard Boat Motors ranging from 6HP to 200HP. These inboard electric propulsion systems offer an eco-friendly alternative to traditional internal combustion engines and are suitable for both new boats and retrofits.
Elco's electric inboard propulsion systems feature highly dependable AC drives that are both potent and low-maintenance, boasting a service life of up to 50,000 hours. Designed for straightforward installation, they are ideal for powering new vessels or converting existing boats with traditional propulsion. Elco's systems fit a variety of watercraft, including sailboats, launches, trawlers, catamarans, workboats, and water taxis, accommodating sizes from 15 to 120 feet and offering a diesel horsepower equivalent range of 2 to 200 hp.
Available options with my Electric Inboard Motor purchase?
The Elco E-Power System comes with all necessary accessories for electric propulsion, including batteries and chargers. Options include a selection of throttles, battery monitors, batteries, chargers, and a battery connection kit for seamless "plug & play" installation. Once the batteries are set up, the system is operational in mere minutes. Switching to a marine electric motor simplifies the process compared to diesel engine replacement, eliminating the need for fuel, cooling, exhaust systems, and complex wiring. For extended cruising capabilities, E-Power Electric Hybrid options offer additional generators and renewable energy components like solar or wind power.
The size and type of electric yacht / motor-boat motor that you choose will depend on a number of factors, including the size and weight of your boat, the type of boating that you will be doing, and your budget.
Here are some of the things to consider when choosing an electric yacht / motor-boat motor:
- Power: The power of the motor is measured in kilowatts (kW). You will need a more powerful motor for a larger or heavier yacht / motor-boat.
- Voltage: The voltage of the motor is measured in volts (V). Higher voltage motors are more powerful, but they also require more expensive batteries.
- Battery capacity: The battery capacity is measured in kilowatt-hours (kWh). You will need a larger battery capacity for a longer range.
- Range: The range of an electric yacht is the distance that it can travel on a single charge. The range will depend on the size and efficiency of the motor, the battery capacity, and the speed of the yacht.
- Charging time: The charging time for an electric yacht battery will depend on the size of the battery and the type of charger that you use.
- Cost: Electric yacht motors are typically more expensive than gasoline or diesel engines. However, they can save you money on fuel costs and maintenance costs in the long run.
Model | Boat Size Range |
Comparable HP Rating |
HP |
Battery Voltage |
Amps (Maximium) |
Kilowatts Peak Output |
Kilowatts |
Weight |
---|---|---|---|---|---|---|---|---|
EP-6 | up to 25 ft | 6 HP | 2-8 HP | 24 Volts | 125 amps | 4.4 kW | 3 kW | 68 lbs |
EP-12 | 20-30 ft | 12 HP | 8-18 HP | 48 Volts | 125 amps | 8.8 kW | 6 kW | 70 lbs |
EP-20 | 25-40 ft | 20 HP | 15-25 HP | 48 Volts | 118 amps | 14.7 kW | 8.5 kW | 72 lbs |
EP-40 | 32-48 ft | 40 HP | 25-45 HP | 108 Volts | 167 amps | 29.4 kW | 17 kW | 400 lbs |
EP-70 | 38-56 ft | 70 HP | 45-85 HP | 108 Volts | 275 amps | 51.5 kW | 29.7 kW | 650 lbs |
EP-100 | 50-85 ft | 100 HP | 75-125 HP | 144 Volts | 295 amps | 73.5 kW | 42.5 kW | 740 lbs |
EP-200 | 60-120 ft | 200 HP | 150-250 HP | 288 Volts | 598 amps | 147 kW | 85 kW | 1780 lbs |

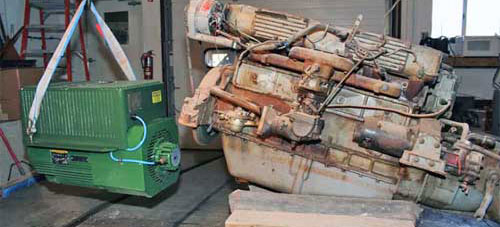

Yacht retrofitted with an Elco EP-40 electric inboard motor
|
Here, an old diesel is swapped out for a new Elco electric motor.
|
EP-6 Electric Inboard Motor
Elco 6 hp Electric Inboard Boat Motor, is a suitable choice for small to medium-sized boats, acco..
$11,105.00
EP-12 Electric Inboard Motor
Elco 12 hp Electric Inboard Boat Motor is an excellent choice for those seeking a potent and eco-..
$12,245.00
EP-20 Electric Inboard Motor
Elco 20 hp Electric Inboard Boat Motor is a mid-range electric propulsion system intended for boa..
$13,100.00
EP-40 Electric Inboard Motor
Elco 40 hp Electric Inboard Boat Motor is a robust and environmentally friendly choice for boat p..
$26,590.00
EP-70 Electric Inboard Motor
Elco 70 hp Electric Inboard Boat Motor is a robust choice for propelling sailboats or powerboats ..
$30,390.00
EP-100 Electric Inboard Motor
Elco 100 hp Electric Inboard Boat Motor This 100-hp electric boat motor is a direct replacement f..
$39,900.00
EP-200 Electric Inboard Motor
Elco 200 hp Electric Inboard Boat Motor Electric conversion is a robust and efficient choice for ..
$113,990.00
